Switch-Pros SP9100 Switch Panel Power System
Switch-Pros SP9100 Switch Panel Power System
Couldn't load pickup availability
Please note: Due to high-demand for our products it can take up to 4 weeks for your order(s) to be completed.

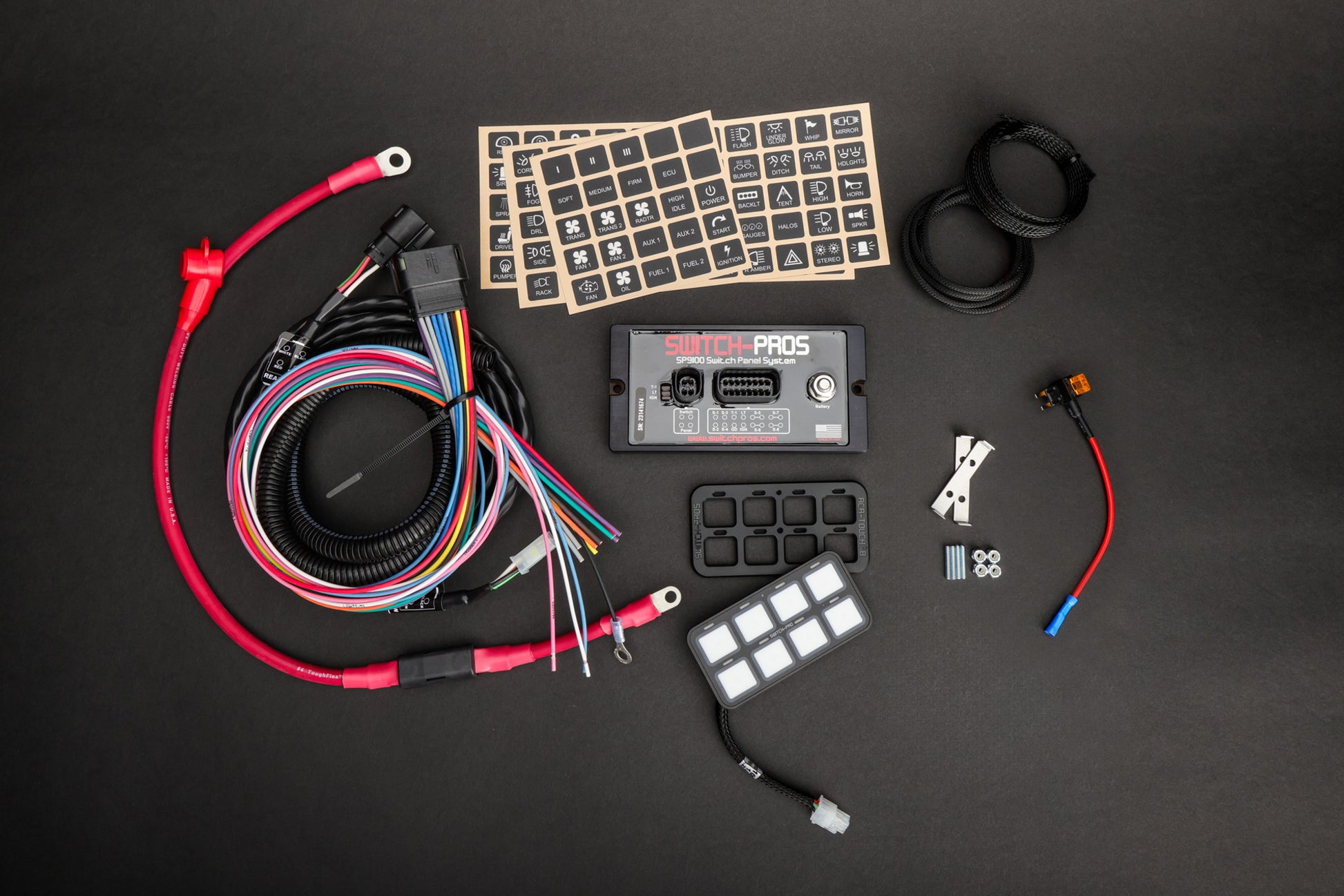

What’s Included
-
Switch Panel and Power Module
-
RCR-Touch®8 cover – snaps on for easier switch selection while wearing gloves or on rough terrain (U.S. Design Patent No. US D922,969 S)
-
11’ Communication Cable (Switch Panel → Power Module)
-
Power Cable with 125A inline fuse
-
125 User-Selectable Legends (horizontal orientation)
-
Installation brackets and hardware
-
16-pin color-coded output harness
-
Detailed installation guide
Features
-

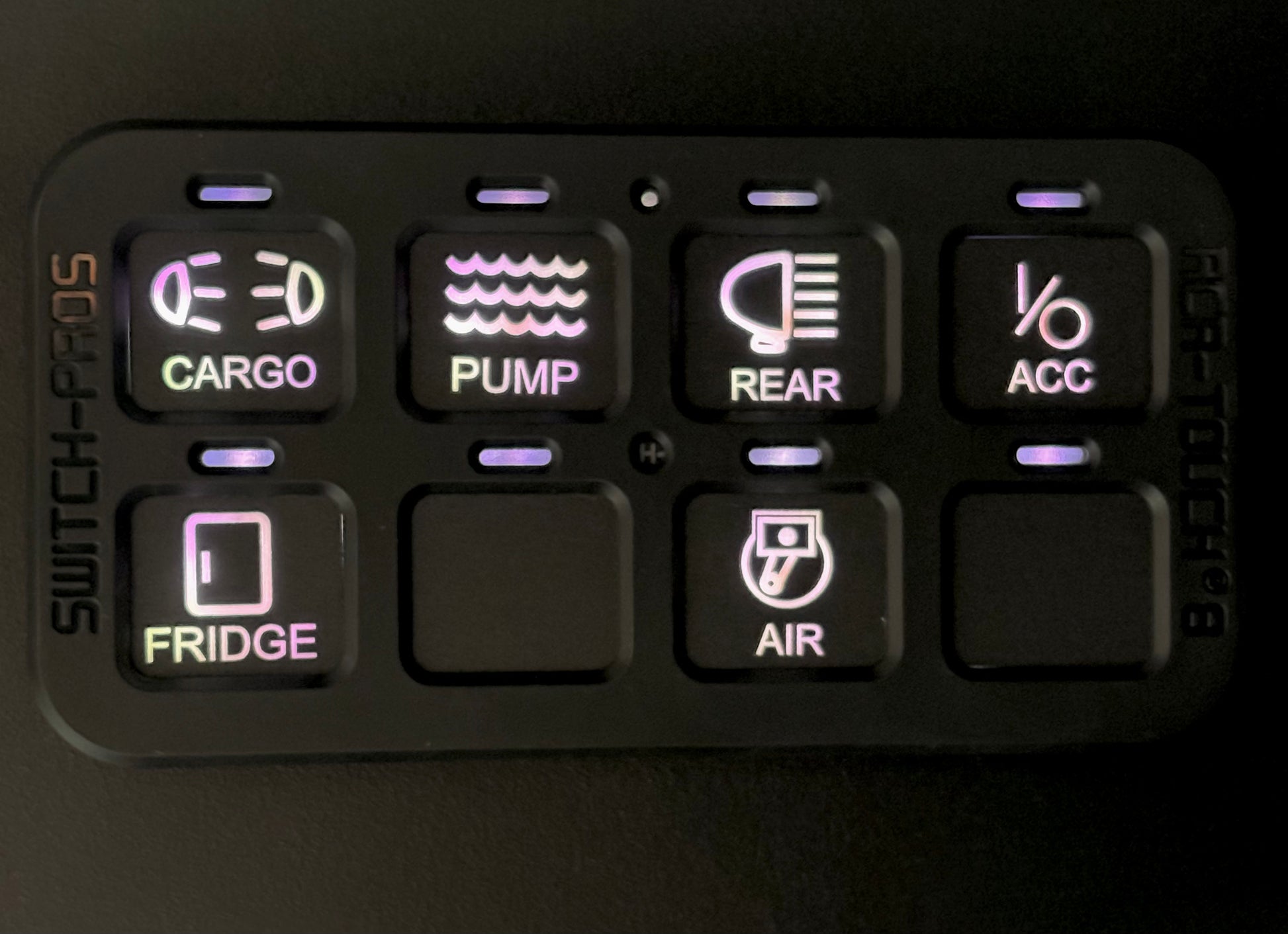

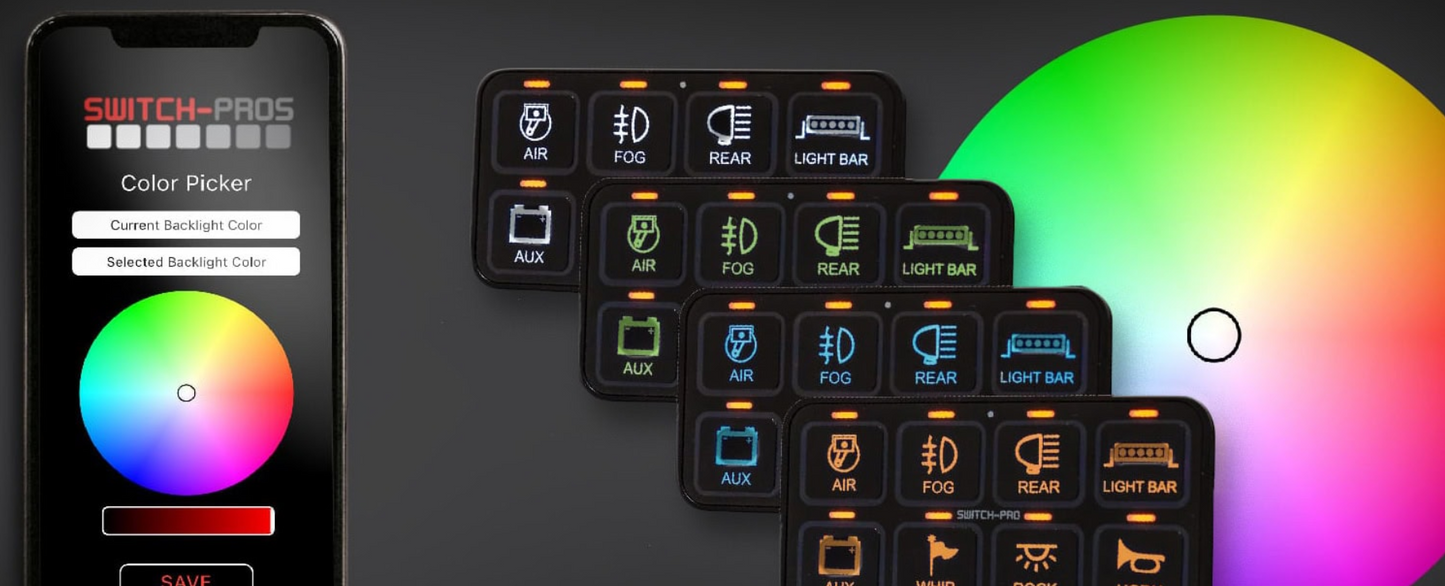

RGB backlighting
-
Built-in Bluetooth module for use with the free Switch-Pros App
-
Program and operate panel from any iOS or Android device
-
Battery voltage readout via app
-
Orange LED switch indicators
-
LED input status indicators on power module for easy troubleshooting
Specifications
-
125A capacity with 8 outputs
-
4 outputs rated @ 35A
-
4 outputs rated @ 20A
-
-
Adjustable output overcurrent values
-
Panel size: 4” L × 2” W × 0.375” H
-
Power module size: 6” L × 3” W × 0.5” H (excluding connectors)
-
Power module operating range: -40°C to 125°C
-
IP67 waterproof rating (panel + module)
Programming & Advanced Functions
-
Preset dimming function with memory (100%–10% brightness)
-
Master Mode – control up to 7 switches with a single touch
-
Configurable On/Off or Momentary functions
-
Ignition or battery input options
-
Flash/Strobe with user-selectable patterns + one-touch activation
-
Automatic power-up with vehicle start
-
Time-delay off
-
No bulky relay box required
-
Two external trigger inputs (each can activate up to 4 outputs, Active Hi or Low)
-
Low voltage disconnect
-
Sleep mode for minimal power draw
-
Daisy-chain up to 3 switch panels to one power module
Proudly made in the USA 🇺🇸
