Switch-Pros RCR-FORCE® 12

Please note: Due to high-demand for our products it can take up to 4 weeks for your order(s) to be completed.

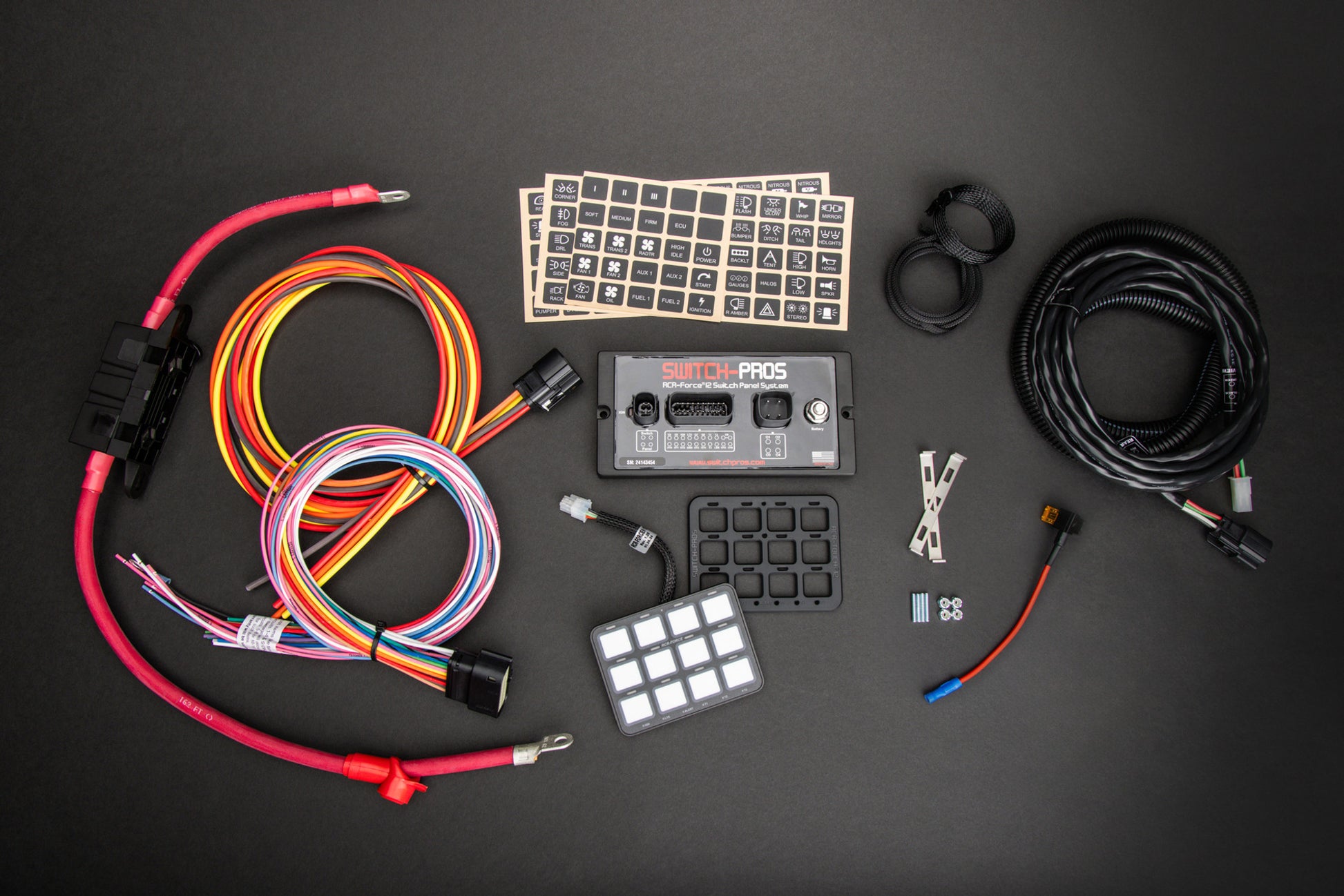

What’s Included

• Switch Panel and Power Module

• RCR-Touch® cover – snaps on for easy switch selection, even while wearing gloves or riding rough terrain (United States Design Patent No. US D922,969 S)

• 11’ Communication Cable – between Switch Panel and Power Module

• Power Cable with 150A inline fuse

• 125 User-Selectable Legends (horizontal orientation)

• Installation brackets and hardware

• 20-pin color-coded output harness

• 4-pin color-coded high inrush output harness

• Detailed installation guide

Features

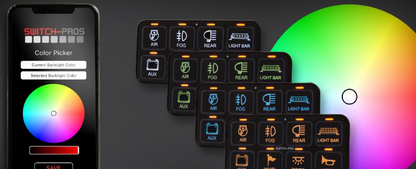

• RGB backlighting

• Built-in Bluetooth module (use with free Switch-Pros App)

• Program and operate from iOS or Google Play Store devices

• Battery voltage readout on app screen

• Orange LED switch indicators

• 6 programmable LED status indicators

Specifications

• Capacity: 150A with 17 outputs

• Outputs:

  • 4 rated @ 35A

  • 1 rated @ 30A (High In-Rush circuit)

  • 11 rated @ 15A (can be combined for larger loads)

  • 1 low side driver switch @ 2A

• Dimensions:

  • Switch Panel: 4” L x 3” W x .375” H (Patent No. US D914,614 S)

  • Power Module: 7” L x 3.5” W x .5” H (excluding connectors)

• Ratings:

  • Power Module under-hood: 125°C to -40°C

  • Waterproof rating: IP67 (Switch Panel & Power Module)

Programming & Other Features

• Preset dimming function with memory (100%–10% brightness)

• Master Mode – control up to 11 switches On/Off with one touch

• On-On-Off logic

• Touch panel lockout

• On/Off or momentary modes

• Ignition or battery input

• Flash or strobe with user-selectable patterns + one-touch activation

• Automatic power-up on vehicle start

• Safety lockout for specific switches

• Time delay off

• No bulky relay box required

• Assign up to 4 output wires to 1 switch

• 3 external trigger inputs (each can activate up to 4 outputs – Active Hi or Active Low)

• Low voltage disconnect

• Sleep mode for minimal power consumption

• Daisy chain up to 3 switch panels to 1 power module

🇺🇸 Proudly made in the USA
