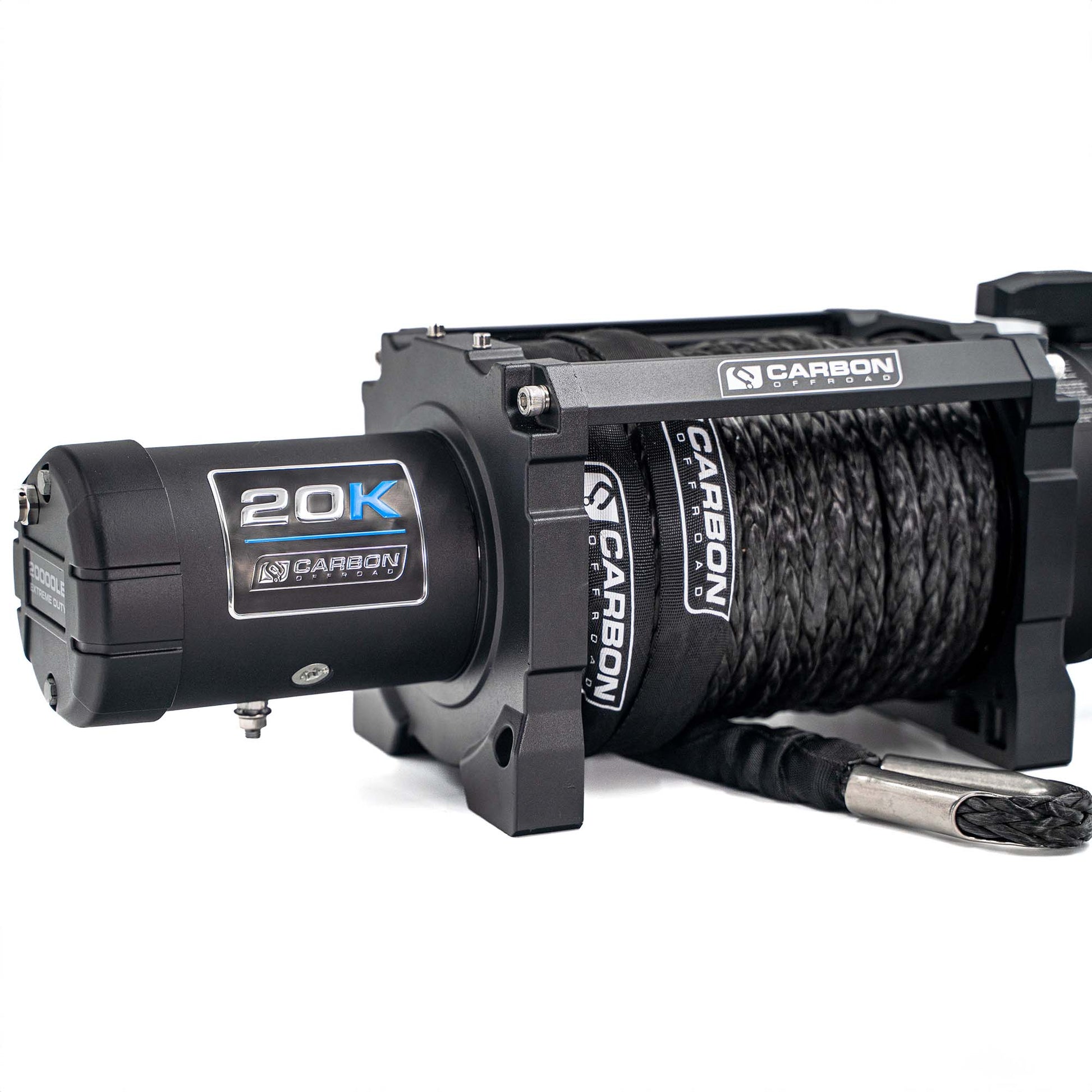

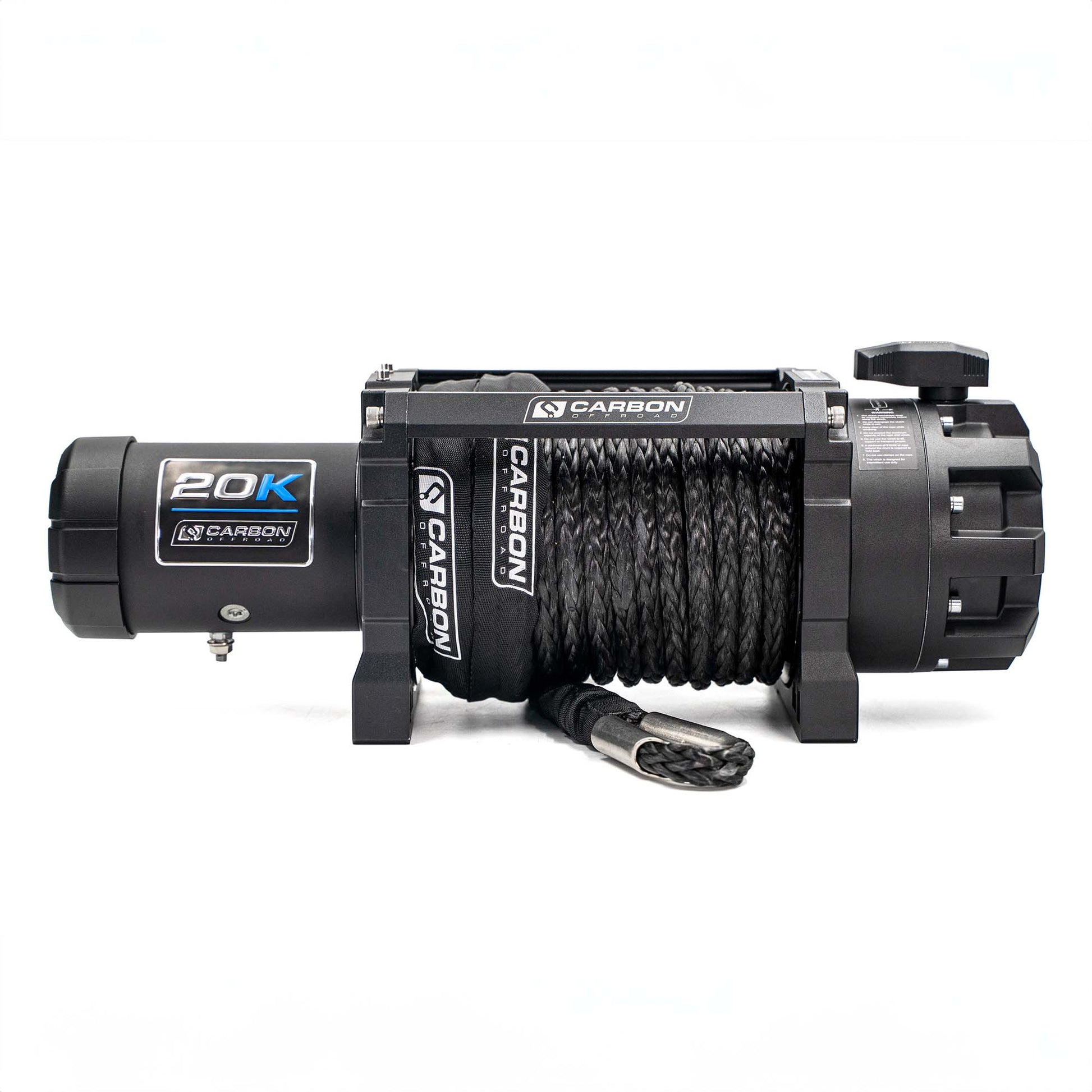

Carbon Scout Pro - 20000lb Extream Duty Truck Winch

Carbon Offroad Scout Pro 20K Extreme Duty Truck Winch

A heavy-duty 37.2 kg truck winch delivering a massive 20,000 lb pull with a 7 HP motor, 3-stage planetary gearbox, automatic brake, and 600 A sealed solenoid. Supplied with wired and wireless remotes, it’s built tough for extreme offroad recovery.

Specifications:

• Part number: CW-XD20
• Rated line pull: 20000 lbs, (9072kg) single-line
• Motor: 12V DC 7 HP series wound motor
• Remote Control: Wired with 3.6m lead
• Wireless Remote Control: Included
• Geartrain: 3-Stage Planetary
• Gear Ratio: 354:1
• Rotating Ring Gear
• Brake: Automatic brake in the motor bracket
• Fairlead: Carbon Offroad MEGAPRO Premium CNC billet type 3 hard anodised multi position fairlead
• Lifetime Mechanical Warranty
• 5 Year Electrical Warranty
• 5 Year Water Ingress Protection Warranty
• Synthetic Rope: 25m x 13mm diameter
• Drum Diameter/Length: 88mm x 224mm
• Mounting Bolt Pattern: 254mm x 114.3mm
• Recommended Battery: 650 CCA minimum for winching
• Winch Dimensions (L x W x H): 579 x 192 x 224mm
• Packing Dimensions (L x W x H): 640 x 250 x 345mm
• Winch weight with synthetic rope attached: 30kg
• Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 37kg
• Combatable with Carbon Offroad Air Freespool Clutch Upgrade, specifically designed for use with Carbon Offroad 12K and Scout Pro winches

Warranty is Limited Lifetime Geartrain / 5 Year Electrical. Designed for Australian and international conditions.
