Carbon Tank 12K Winch

Carbon Tank 12K Winch

$1,500.00 AUD
$1,500.00 AUD
Sale Contact for Availability
Tax included.

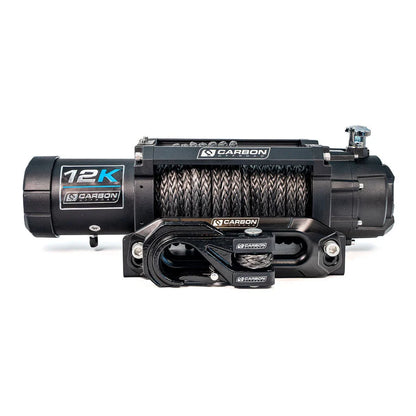

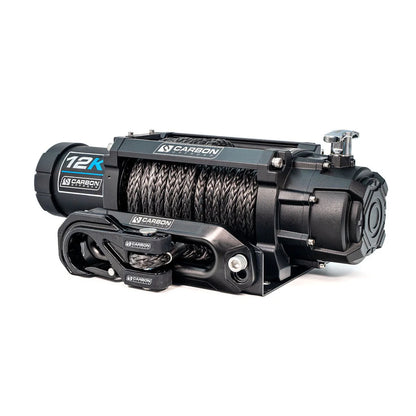

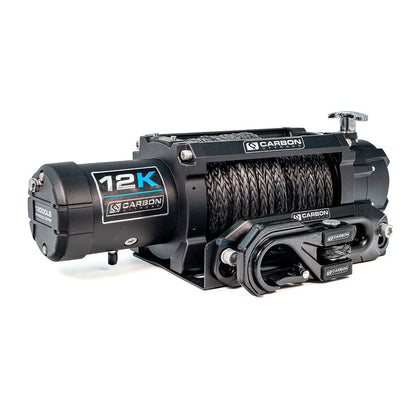

The Carbon Offroad TANK 12000lb electric winch is a force to be reckoned with.

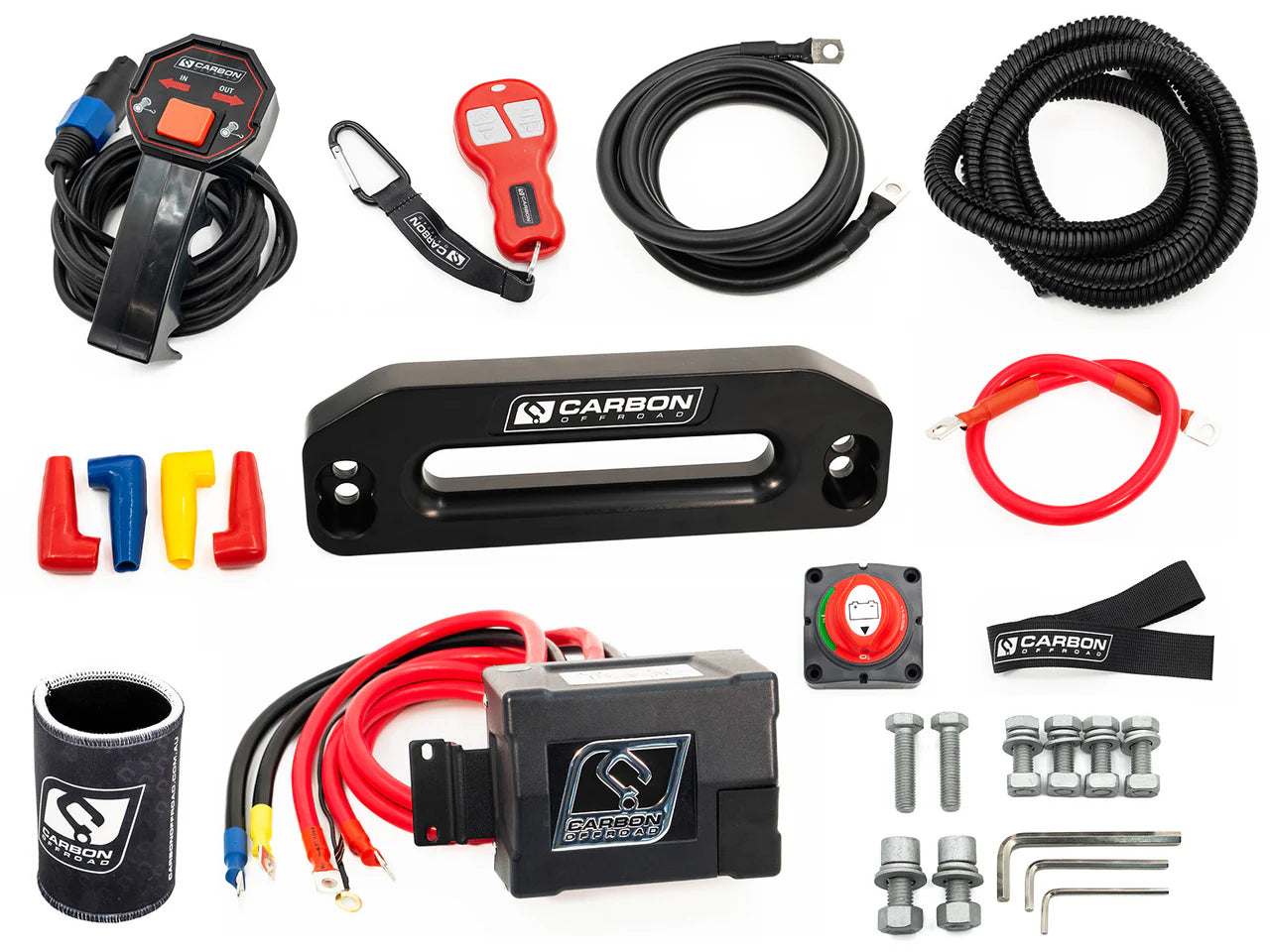

What is in the box:

  • 1 x Tank winch with synthetic rope
  • 1 x control box kit complete with cables
  • 1 x battery earth cable
  • 1 x 2 in 1 wireless remote control with plug in cable backup
  • 1 x Alloy fairlead - standard offset
  • 1 x Forged Alloy hook with mounting pin and split pin
  • 1 x Mounting Bolt kit including separate fairlead mounting bolts
  • 1 x control box "over motor" mounting bracket pair
  • 1 x bolt kit for control box mounting
  • 1 x rotary battery isolator switch
  • 1 x battery isolator connecting cable 30cm
  • 1 x battery isolator mounting bracket
  • 1 x hook safety strap
  • 1 x instruction manual

Specifications:

  • Rated Pulling Power: 12000lb (5454kg)
  • Power: 12V DC
  • Motor: 7.0HP Series Wound intermittent duty cycle
  • Cabling: 25mm2 conduited cable with terminated lugs
  • Hand Control: 2 in 1 rechargeable wireless or plug in wired loom -(spare battery included)
  • IP Rating: IP68 - Motor unit pressure tested to 20psi
  • Hook: High strength forged alloy wide gate hook
  • Control box: Premium Cast alloy compact design for over motor or over drum fitment with 600amp solenoid and inbuilt wireless receiver.
  • Isolator: Heavy duty marine rotary style isolator with mounting bracket
  • Winch Housing: Cast and precision machined alloy
  • Gear Train: 234:1 Ratio 3 stage planetary gearset

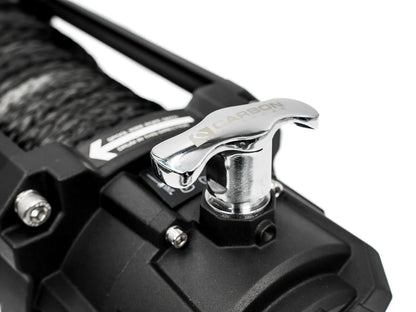

  • Clutch: Rotating ring gear clutch - easy engagement and disengagement

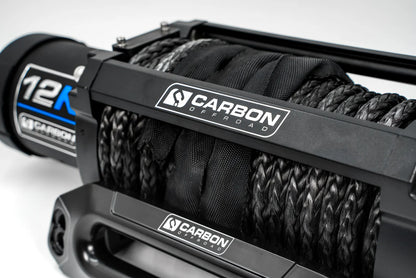

  • Synthetic rope: 26mm of 10mm diameter UHMWPE fibre
  • Mounting bolt pattern: industry standard 254mm x 114.3mm (10 x 4.5 inch)
  • Drum Diameter: 64mm
  • Battery: 650CCA minimum vehicle battery size for winching.
  • Weight:
    • Shipping Carton Weight: 29.5KG
    • As fitted to vehicle:  26.2kg



Rated Line Pull:

  • 1st layer of drum: 12000lb (5443kg) / Between 20-25m rope out
  • 2nd layer of drum: 9210lb (4186kg) / Between 9-20m rope out
  • 3rd layer of drum: 6894lb (3127kg) / Between 1-9m rope out



  • Line pull 0kg
    • Speed: 16.4ft/min - 5m/min
    • Amp Draw: 85 amp
  • Line pull 3000lb / 1361kg
    • Speed: 9.75ft/min - 3m/min
    • Amp Draw: 137 amp
  • Line pull 6000lb / 2722kg
    • Speed: 7.5ft/min - 2.28m/min
    • Amp Draw: 191 amp
  • Line pull 9000lb / 4082kg
    • Speed: 5.76ft/min - 1.76m/min
    • Amp Draw: 249 amp
  • Line pull 12000lb / 5443kg
    • Speed: 4.88ft/min - 1.49m/min
    • Amp Draw: 300 amp



Warranty is Limited Lifetime Geartrain / 5 Year Electrical.
